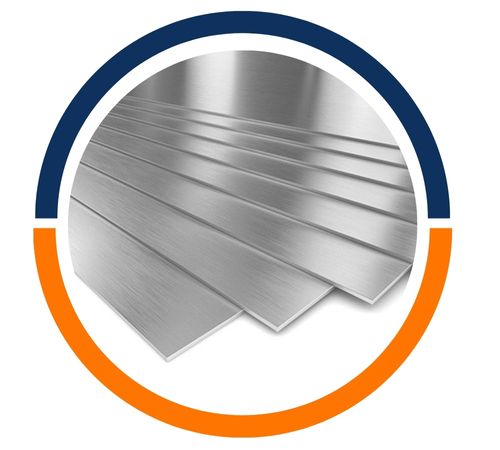

Mustafa Aluminium, located in Istanbul, Turkey, stands out as a top manufacturer and supplier of Aluminium 2017 Sheets and Plates. They pride themselves on delivering high-quality products that are built for strength, durability, and precise performance. Aluminium 2017 is a robust alloy that finds its place in aerospace, automotive, and structural applications where reliability is a must, especially under stress. Mustafa Aluminium guarantees meticulous manufacturing, an exceptional surface finish, and adherence to international quality standards, making their Aluminium 2017 Sheets and Plates a go-to choice for projects that demand outstanding mechanical properties, long-lasting durability, and resistance to wear and deformation.
These Aluminium 2017 Sheets and Plates are primarily made from aluminium mixed with copper, along with small amounts of manganese, magnesium, and silicon, all of which boost strength, hardness, and fatigue resistance. They showcase impressive tensile and yield strength, excellent toughness, and good machinability, making them ideal for critical structural and load-bearing applications. The alloy can also be heat-treated to enhance its mechanical properties, striking a balance between strength, durability, and stress resistance. Lightweight yet incredibly strong, Aluminium 2017 Sheets and Plates deliver dependable performance in challenging industrial, aerospace, and engineering settings.
Standards : ASTM B209 / ASME SB209
Temper : O, T3,T4, T6, T651
Thickness : 0.2-250
Width : 100-2600
Length : 500-10000
Surface : Bright, polished, hair line, brush, sand blast, embossed, etching, etc.
Finish :Mill, Customer specific finish
Aluminum Sheet/ Plate Coating : PVC Coated, Color Coated, Polyester, Fluorocarbon, polyurethane and epoxy coating
Type : Hot-Rolled (HR) / Cold-Rolled (CR) Sheet
| Al | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Other Each | Other Total |
| Bal. | 0.20-0.8 | 0.7 max | 3.5-4.5 | 0.40-1.0 | 0.40-0.8 | 0.10 max | 0.25 max | 0.15 max | 0.05 max | 0.15 max |
| Material | Condition | Tensile Strength (N/mm²) min | Yield Strength | Elongation in 4D % | ||
| ksi | Mpa | ksi | Mpa | |||
| Al 2017 | 2017-T4 Bar | 55 | 379 | 32 | 221 | 12 |
Mustafa Aluminium based in Istanbul, Turkey is a renowned manufacturer and supplier of premium aluminium products, including Aluminium Bars, Sheets and Plates, Coils, Chequered Plates, Wires, Pipes, Fittings, Flanges, Forging, Circle, Angles. With a commitment to delivering exceptional quality and service, we cater to diverse industries, offering reliable solutions tailored to specific requirements. Our products are known for their superior strength, corrosion resistance, and precise dimensions. We focus on customer satisfaction by providing an extensive range of aluminium bars designed for structural, industrial, and decorative applications.
| European Standard | OLD | WNr | UNS | ISO | USA (AA) | GERMANY (DIN) |
| AW-AlCu4MgSi | AU4G | 3.1325 | A92017 | AlCu4SiMg | 2017 | AlCuMg1 |
| Sizes (mm) | Theoretical Mass KG/Plate |
|---|---|
| 2000 X 1000 X 0.5 | 2500 X 1250 X 0.5 |
| 2000 X 1000 X 0.7 | 2500 X 1250 X 0.7 |
| 2000 X 1000 X 0.9 | 2500 X 1250 X 0.9 |
| 2000 X 1000 X 1.2 | 2500 X 1250 X 1.2 |
| 3000 X 1500 X 1.2 | 2000 X 1000 X 1.6 |
| 2500 X 1250 X 1.6 | 3000 X 1500 X 1.6 |
| 2000 X 1000 X 2.0 | 2500 X 1250 X 2.0 |
| 3000 X 1500 X 2.0 | 2500 X 1250 X 2.5 |
| 2.79 | 4.36 |
| 3.91 | 6.10 |
| 5.02 | 7.85 |
| 6.74 | 10.46 |
| 15.01 | 8.93 |
| 13.95 | 20.09 |
| 11.16 | 17.44 |
| 25.11 | 21.80 |
Yes, we offer custom sizes for Aluminium 2017 Sheets and Plates to meet specific project needs. Our team at Mustafa Aluminium is committed to providing customized solutions for all your requirements. For more details, contact us at sales@mustafaaluminium.com
In the aerospace sector, Aluminium 2017 Sheets and Plates are widely used in components like aircraft frames, wings, and fuselage parts, thanks to their impressive strength-to-weight ratio. In the automotive world, they find applications in high-performance vehicle parts, chassis components, and structural reinforcements. They’re also utilized in industrial machinery, pressure vessels, and heavy engineering projects where durability and fatigue resistance are paramount. Furthermore, they are well-suited for defense and structural projects that require high-strength aluminium alloys. With their remarkable mechanical performance, Aluminium 2017 Sheets and Plates continue to be a favored material in high-stress and demanding environments.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
