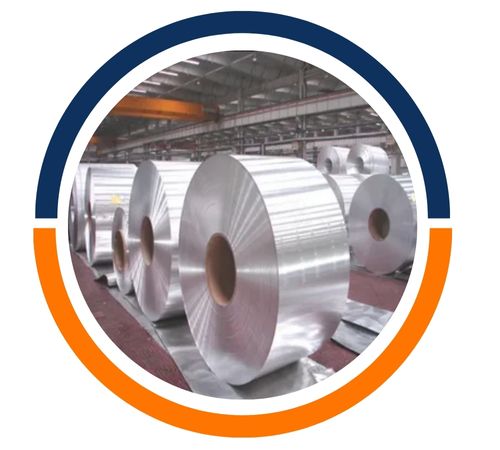

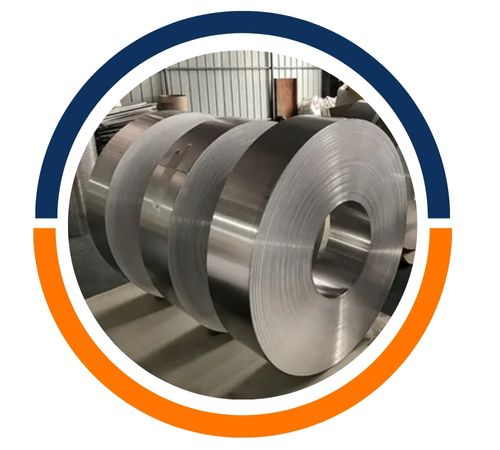

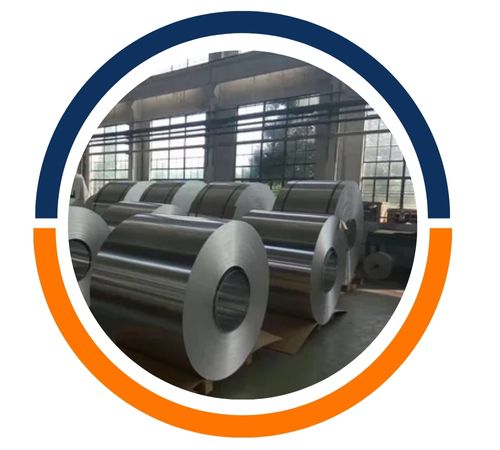

Mustafa Aluminium, located in Istanbul, Turkey, stands out as a top manufacturer and supplier of premium aluminium products, providing innovative solutions tailored to various industries. Among its extensive product lineup, Aluminium 5005 Coils are particularly celebrated for their remarkable corrosion resistance, smooth surface finish, and excellent formability. Crafted with cutting-edge manufacturing techniques, these coils are perfect for use in architecture, signage, transportation, and electrical sectors. Mustafa Aluminium is dedicated to delivering high-quality aluminium materials that meet international standards, ensuring reliable performance, quick delivery, and customer satisfaction throughout Turkey, Europe, and the Middle East.
Aluminium 5005 Coils are primarily made up of aluminium (≥97.5%), with small amounts of magnesium (0.5–1.1%) added to boost strength and corrosion resistance. They may also contain trace elements like iron, silicon, copper, and manganese. This alloy, which isn’t heat-treatable, boasts a tensile strength ranging from 170 to 215 MPa and a yield strength of about 110 MPa, along with impressive elongation and fatigue resistance. Aluminium 5005 is known for its good weldability and outstanding anodizing properties, resulting in a smooth, clear finish that’s perfect for architectural applications. Its excellent performance in both indoor and outdoor settings makes it a dependable choice for light-to-medium strength uses.
Standards : ASTM B209 / ASME SB209
Temper : O,H14,H16,H18,H19,H22,H24
Thickness : 0.1-4
Width : coil
Length : 100-1600
Surface : Bright, polished, hair line, brush, sand blast, embossed, etching, etc.
Finish :Mill, Customer specific finish
Aluminum Coil Coating : PVC Coated, Color Coated, Polyester, Fluorocarbon, polyurethane and epoxy coating

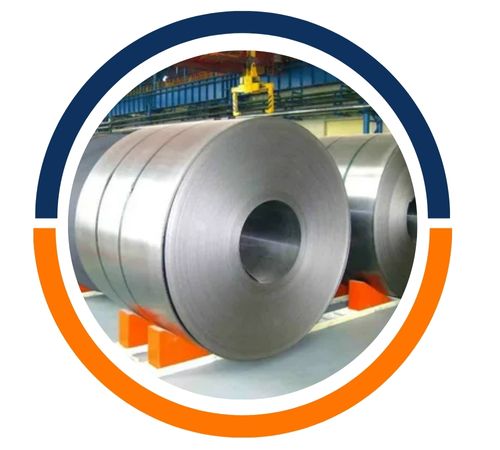

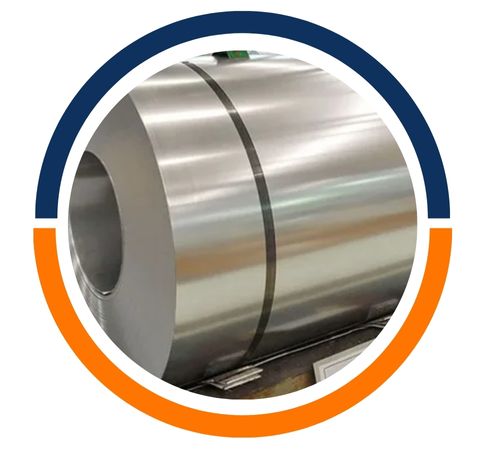

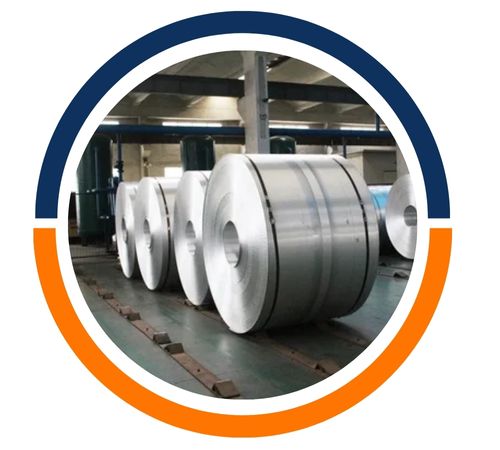

Type : Hot-Rolled (HR) / Cold-Rolled (CR) Coil
| European Standard | GERMANY | UNS | DIN,WNr |
| B57S | AI-Mg-1 | A95005 | – |
| Weight% | Al | Si | Fe | Cu | Mn | Cr | Mg | Zn | Others Each | Others Total |
| 5005 | Bal | 0.30 max | 0.70 max | 0.20 max | 0.20 max | 0.10 max | 0.50 / 1.10 | 0.25 max | 0.05 max | 0.15 max |
| Material | Temper | Tensile Strength (N/mm²) | Yield Strength (N/mm²) | Elongation on 50mm (%) | |||
| 0.5 mm | 0.8 mm | 1.3 mm | 2.6mm | ||||
| 5005 | 0 | 95-145 | – | 18 | 20 | 21 | 22 |
| 5005 | H12 | 125-170 | 80 | 4 | 5 | 6 | 8 |
| 5005 | H14 | 145-185 | 100 | 3 | 3 | 5 | 6 |
| 5005 | H18 | 185 min | 165 | 1 | 2 | 3 | 3 |
Mustafa Aluminium based in Istanbul, Turkey is a renowned manufacturer and supplier of premium aluminium products, including Aluminium Bars, Sheets and Plates, Coils, Chequered Plates, Wires, Pipes, Fittings, Flanges, Forging, Circle, Angles. With a commitment to delivering exceptional quality and service, we cater to diverse industries, offering reliable solutions tailored to specific requirements. Our products are known for their superior strength, corrosion resistance, and precise dimensions. We focus on customer satisfaction by providing an extensive range of aluminium bars designed for structural, industrial, and decorative applications.
Yes, we offer custom sizes for Aluminium 5005 Coils to meet specific project needs. Our team at Mustafa Aluminium is committed to providing customized solutions for all your requirements. For more details, contact us at sales@mustafaaluminium.com
Aluminium 5005 Coils find extensive applications in industries that demand a blend of corrosion resistance, surface quality, and moderate strength. In architecture, they’re utilized for roofing, cladding, curtain walls, and decorative panels thanks to their superb anodizing capabilities. In the signage and display sectors, 5005 coils offer a sleek, reflective surface ideal for printing and engraving. They’re also employed in electrical enclosures and appliance panels, showcasing their versatility across various applications.
