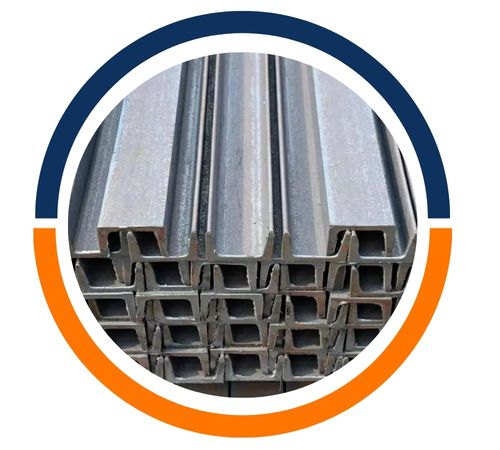

Mustafa Aluminium, a reputable manufacturer and supplier located in Istanbul, Turkey, specializes in providing top-notch aluminium solutions tailored for demanding industrial needs. One of their standout products is the Aluminium 5083 Channel, celebrated for its remarkable strength, resistance to corrosion, and durability even in harsh conditions. Crafted in line with international standards, these channels are perfect for structural applications across marine, transportation, and construction sectors. With a strong focus on precision, quality assurance, and timely delivery, Mustafa Aluminium ensures that clients throughout Turkey, Europe, and the Middle East receive reliable aluminium products that stand the test of time.
The Aluminium 5083 Channel is crafted from a robust aluminium-magnesium-manganese alloy. Its typical makeup consists of approximately 92.5% aluminium, 4.0–4.9% magnesium, 0.4–1.0% manganese, and 0.05–0.25% chromium, along with minor amounts of iron and silicon. This alloy, which isn’t heat-treatable, boasts excellent corrosion resistance, particularly in saltwater and chemically aggressive settings. It has a tensile strength ranging from 270 to 350 MPa and a yield strength of about 215 MPa, depending on the temper. Additionally, Aluminium 5083 is known for its good weldability and maintains its strength even in extreme temperatures, making it a reliable choice for applications that demand structural integrity and long-lasting performance.

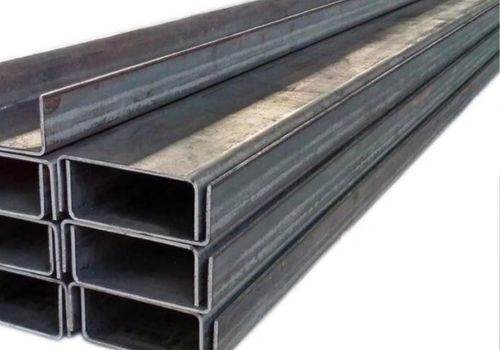

Specifications: ASTM B211 / ASME SB211
Temper: O, H12, H14, H16, H18, H22, H24, H26, H32, H112
Thickness: 0.91mm to 10 mm
Length: 10 to 12 Feet or as per clients’ requirement
Width: 9.5 mm X 9.5 mm To 150 mm X 75 mm or Custom
Finish: Mill, Customer specific finish

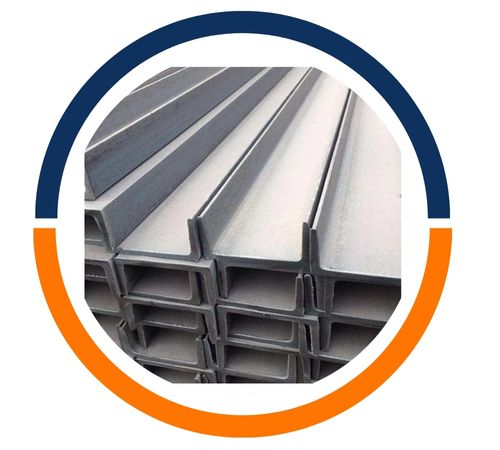

Surface: Anodize, powder coating, electrophoresis, PVDF coating, wood grain painting, matted, etc
Form: C-Channel, Box-Channel, U-Channel, J-Channel, Hat Channel, Strut Channels, Miscellaneous Channels
| Al | Si | Fe | Cu | Mn | Cr | Mg | Ti | Zn | Other Each | Others Total |
| Bal | 0.40 max | 0.40 max | 0.10 max | 0.40 / 1.0 | 0.05 / 0.25 | 4.0 / 4.90 | 0.15 max | 0.25 max | 0.05 max | 0.15 max |
| Proof Stress | Tensile Strength | Hardness Brinell | Elongation |
| 125 Min MPa | 275 – 350 MPa | 75 HB | 12 Min % |
Mustafa Aluminium based in Istanbul, Turkey is a renowned manufacturer and supplier of premium aluminium products, including Aluminium Bars, Sheets and Plates, Coils, Chequered Plates, Wires, Pipes, Fittings, Flanges, Forging, Circle, Angles. With a commitment to delivering exceptional quality and service, we cater to diverse industries, offering reliable solutions tailored to specific requirements. Our products are known for their superior strength, corrosion resistance, and precise dimensions. We focus on customer satisfaction by providing an extensive range of aluminium bars designed for structural, industrial, and decorative applications.

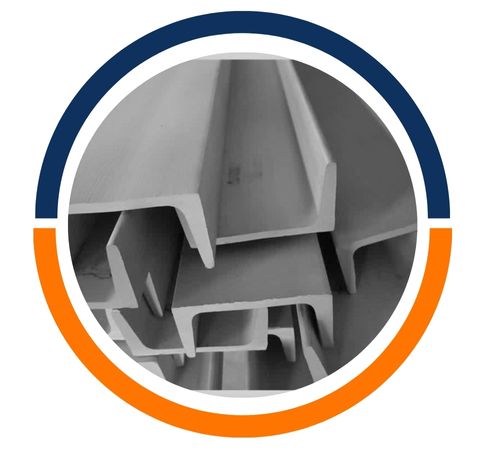

| European Standard | OLD | WNr | UNS | ISO | USA (AA) | GERMANY (DIN) |
| AW-AlMg4,5Mn0,7 | AG4,5MC | 3.3547 | A95083 | AlMg4,5Mn0,7 | 5083 | AlMg4,5Mn |
Yes, we offer custom sizes for Aluminium 5083 Channel to meet specific project needs. Our team at Mustafa Aluminium is committed to providing customized solutions for all your requirements. For more details, contact us at sales@mustafaaluminium.com
