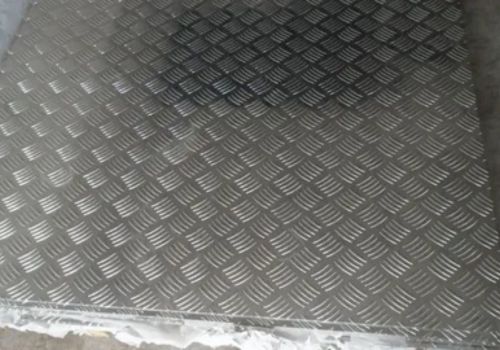

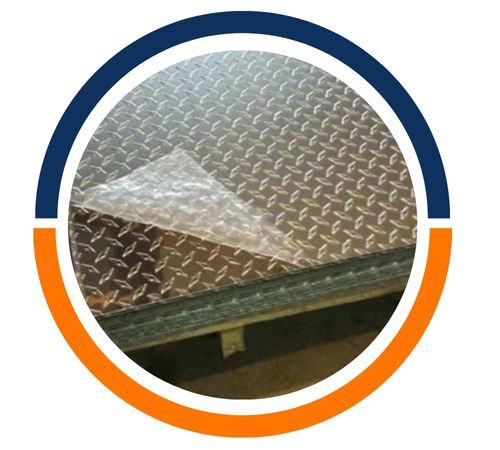

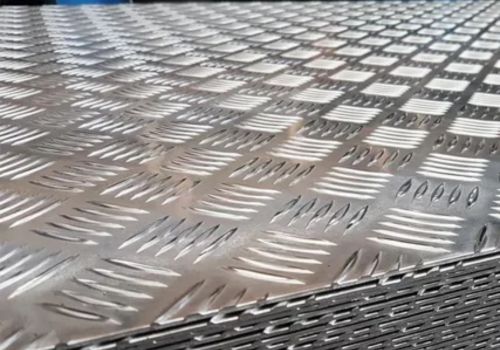

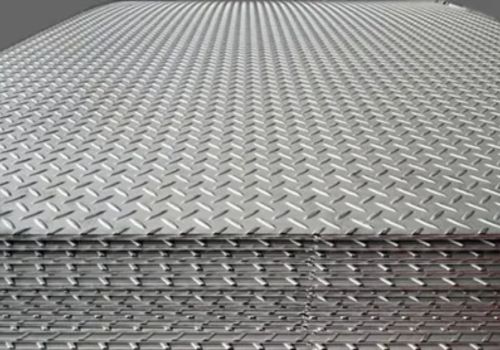

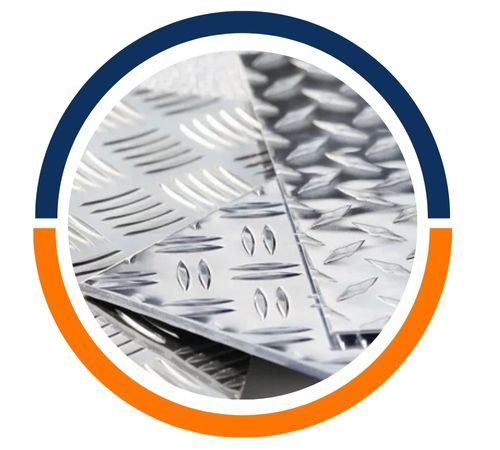

Mustafa Aluminium is a reputable manufacturer and supplier of Aluminium 5086 Chequered Plates, based in Istanbul, Turkey. Renowned for its high-quality aluminium products, the company caters to industries that demand durability, strength, and exceptional corrosion resistance. The Aluminium 5086 Chequered Plates come with a raised pattern that enhances grip, making them perfect for flooring and anti-slip applications. Mustafa Aluminium employs cutting-edge manufacturing technology to produce plates with precise dimensions, uniform patterns, and reliable mechanical properties. Their commitment to international quality standards and timely delivery has established them as a trusted supplier for marine, automotive, construction, and industrial sectors around the globe.
Aluminium 5086 Chequered Plates are crafted from a high-magnesium aluminium alloy that contains 3.5–4.5% magnesium, with manganese and chromium added as minor alloying elements to boost strength and corrosion resistance. This alloy boasts a tensile strength ranging from 275–350 MPa and a yield strength of 125–200 MPa, depending on the temper. It offers remarkable resistance to seawater corrosion, excellent weldability, and good formability. Aluminium 5086 maintains its toughness even at low temperatures and can be strain-hardened to enhance strength. Its chequered surface improves slip resistance, making it a top choice for flooring and structural applications in challenging environments.
Standards : ASTM B209 / ASME SB209
Temper : O,H12,H14,H16,H18,H19,H22,H24,H26,H28,H32,H34,H36,H38,H111,H112,H114,H 116,H321
Thickness : 0.15-600
Width : 100-2600
Length : 500-10000
Surface : Bright, polished, hair line, brush, sand blast, embossed, etching, etc.
Finish :Mill, Customer specific finish
Aluminum Chequered Plate Coating : PVC Coated, Color Coated, Polyester, Fluorocarbon, polyurethane and epoxy coating

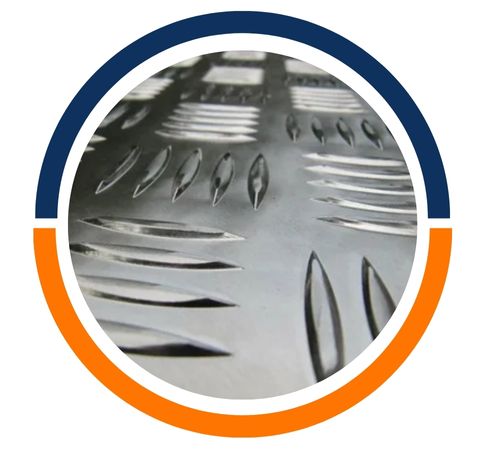

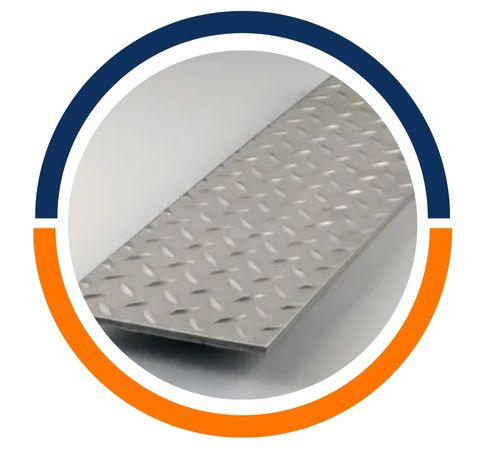

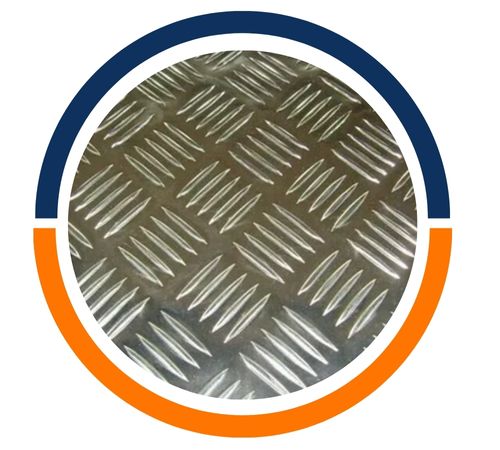

Type : Hot-Rolled (HR) / Cold-Rolled (CR) Chequered Plate
| European Standard | OLD | WNr | UNS | ISO | USA (AA) | GERMANY (DIN) |
| AW-AlMg4 | AG4MC | 3.3545 | A95086 | AlMg4 | 5086 | AlMg4Mn |
| Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Others, each | Others, total | Al |
| 0.4 | 0.5 | 0.1 | 0.20-0.70 | 3.5-4.5 | 0.05-0.25 | 0.25 | 0.15 | 0.05 | 0.15 | Balance |
| Proof Stress | Tensile Strength | Hardness Brinell | Elongation |
| 125 Min MPa | 275 – 350 MPa | 75 HB | 12 Min % |
Mustafa Aluminium based in Istanbul, Turkey is a renowned manufacturer and supplier of premium aluminium products, including Aluminium Bars, Sheets and Plates, Coils, Chequered Plates, Wires, Pipes, Fittings, Flanges, Forging, Circle, Angles. With a commitment to delivering exceptional quality and service, we cater to diverse industries, offering reliable solutions tailored to specific requirements. Our products are known for their superior strength, corrosion resistance, and precise dimensions. We focus on customer satisfaction by providing an extensive range of aluminium bars designed for structural, industrial, and decorative applications.
Yes, we offer custom sizes for Aluminium 5086 Chequered Plates to meet specific project needs. Our team at Mustafa Aluminium is committed to providing customized solutions for all your requirements. For more details, contact us at sales@mustafaaluminium.com
Aluminium 5086 Chequered Plates are extensively utilized for flooring, stair treads, and walkways in marine vessels, offshore platforms, and industrial facilities, thanks to their outstanding corrosion resistance and slip-resistant design. They are also perfect for truck beds, trailers, and ramps in the transportation sector, where strength and weight savings are essential. In construction, these plates are employed for platforms, loading docks, and architectural finishes that require both functionality and aesthetic appeal.
