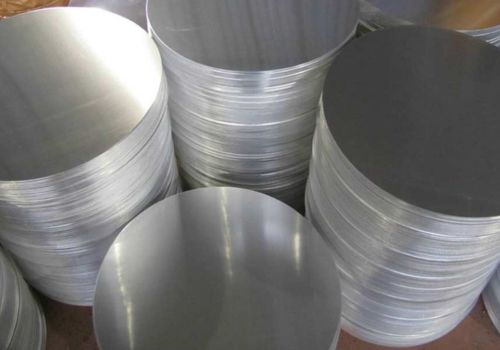

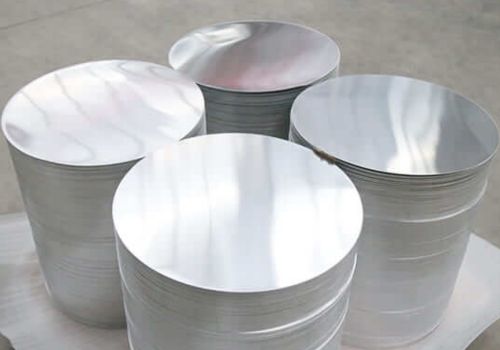

Istanbul, Turkey-based Mustafa Aluminium is a reliable Aluminium 5754 circle manufacturer and supplier that provides high-performance, corrosion-resistant circles for diverse industrial and marine use. The circles are produced with sophisticated rolling and cutting methods in different diameters and thicknesses as per exact customer requirements. Synonymous with superior durability, lightweight characteristics, and resistance to severe environments, Aluminium 5754 circles from Mustafa Aluminium are produced in rigid quality control. They cater to industries like automotive, marine, construction, and manufacturing, where strength, corrosion resistance, and formability are critical.
Aluminium 5754 circles are produced from an aluminium-magnesium alloy that is famous for exhibiting superior corrosion resistance, particularly in marine and industrial applications. These discs normally have tensile strengths of 160-280 MPa and yield strengths of 110-230 MPa based on the temper (which is usually H22, H24, or O). The alloy possesses good weldability, formability, and reasonable strength, rendering it convenient for fabrication operations and deep drawing. Aluminium 5754 discs preserve their integrity and functionality even in humid, salty, or chemically aggressive environments, thus providing reliable performance over a long period of time.
| Specifications | ASTM B209 / ASME SB209 |
|---|---|
| Temper | O,H12,H14,H16,H18,H19,H22,H24 |
| Thickness | 1 Mm To 100 mm |
| Diameter | Upto 2000 mm |
| Circle Diameter | 3″ DIA up to 38″ DIA 1500 lbs max |

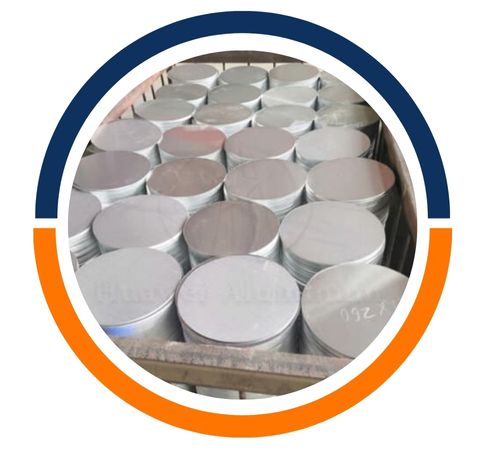

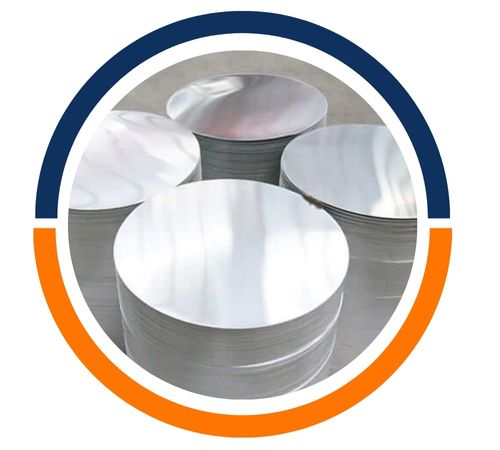

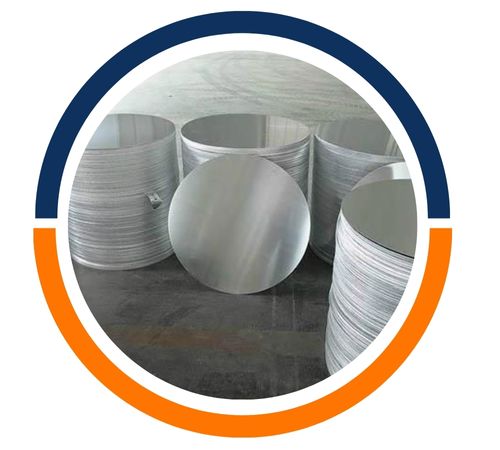

| Circles Form | Hot Rolled Circles, Cold Rolled Circle, Proof Machined Circles |
| Finish | Mill, Customer specific finish |
| Aluminum Circle Coating | PVC Coated, Color Coated, Polyester, Fluorocarbon, polyurethane and epoxy coating |
| Mg | Mn | Si | Cu | Fe | Cr | Zn | Ti | Cu | Other (Each) | Others (Total) | Al |
| 2.60 – 3.60 | 0.0 – 0.50 | 0.0 – 0.40 | 0.0 – 0.40 | 0.0 – 0.30 | 0.0 – 0.20 | 0.0 – 0.15 | 0.0 – 0.10 | 0.0 – 0.05 | 0.0 – 0.05 | 0.0 – 0.15 | Balance |
| Proof Stress | Tensile Strength | Elongation at 50 mm | Hardness Brinell |
| 80 Min MPa | 190 – 260MPa | 12 Min % | 52 HB |
| UNS | EN | DIN | ISO | USA | WNR |
| A95754 | EN AW-5754 | AlMg3 | AlMg3 | AA5754 | 3.3535 |
Mustafa Aluminium based in Istanbul, Turkey is a renowned manufacturer and supplier of premium aluminium products, including Aluminium Bars, Sheets and Plates, Coils, Chequered Plates, Wires, Pipes, Fittings, Flanges, Forging, Circle, Angles. With a commitment to delivering exceptional quality and service, we cater to diverse industries, offering reliable solutions tailored to specific requirements. Our products are known for their superior strength, corrosion resistance, and precise dimensions. We focus on customer satisfaction by providing an extensive range of aluminium bars designed for structural, industrial, and decorative applications.
Yes, we offer custom sizes for Aluminium 5754 Circles to meet specific project needs. Our team at Mustafa Aluminium is committed to providing customized solutions for all your requirements. For more details, contact us at sales@mustafaaluminium.com
Aluminium 5754 circles are popular in multiple industries because of their strength, corrosion resistance, and versatility. In marine construction, they are applied to shipbuilding, boat components, and offshore equipment to withstand exposure to seawater. The automobile industry utilises these circles in body panels, fuel tanks, and structural parts where lightness and corrosion resistance are crucial. In building construction, Aluminium 5754 circles are applied in roofing, cladding, and in decorative features. They are also used in manufacturing machinery, chemical processing, and in the food industry, providing a robust and flexible solution for a range of requirements.
