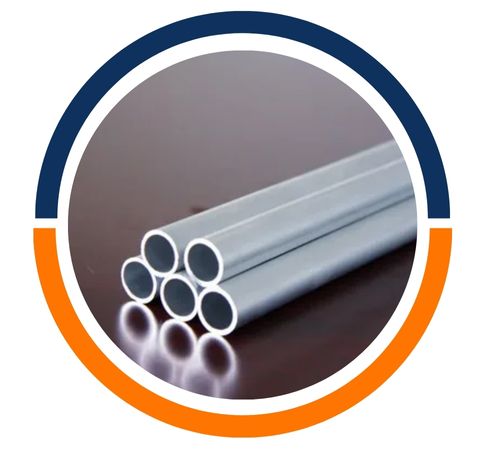

Mustafa Aluminium, based in Istanbul, Turkey, is a reliable producer and exporter of high-quality aluminium seamless pipes, providing quality products to all sectors of industry locally and internationally. With their accurate production and applications of high-quality aluminium alloys, Mustafa Aluminium ensures that seamless pipes that leave their facilities are the best in terms of strength, durability, and resistance to corrosion. With state-of-the-art manufacturing facilities and a skilled staff, Mustafa Aluminium promises to fulfill the varied demands of customers across industries like aerospace, automobile, construction, and naval with every order, ensuring consistent performance and prompt delivery.
Aluminium seamless pipes are produced using high-strength aluminium alloys like 6061, 7075, and 5083 that provide superior strength, corrosion resistance, and light weight. These pipes have tensile strengths ranging from 180 to 570 MPa and yield strengths between 110 and 500 MPa, varying by alloy and temper. Without welded seams and with homogeneous grain structures, seamless pipes contain higher mechanical strength and greater pressure capacity. In addition to their high thermal conductivity, excellent fatigue properties, and ease of machining, seamless pipes are best suited to precision applications where reliability and performance are essential in a variety of environmental settings.
Standards : ASTM B345, B241, B429 / ASME SB345, SB241, SB429
Standard : AMS QQ-A-200/8, AMS QQ-A-200/9, AMS 4160/4161/4172
Size : 8 (1-1/2″ / 1.900″)
Outer Diameter : 1″ through 16″
Length : Double Random, Single Random, Cut Length
Thickness : SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
End : Plain End, Beveled End, Threaded
ASTM B241 / ASME SB241 – Standard Specification for Aluminum and Aluminum-Alloy Seamless Pipe and Seamless Extruded Pipes
ASTM B345 / ASME S345 – Standard Specification for Aluminum and Aluminum-Alloy Seamless Pipe and Seamless Extruded Pipe for Gas and Oil Transmission and Distribution Piping Systems
ASTM B429 / ASME SB429 – Standard Specification for Aluminum-Alloy Extruded Structural Pipe and Tube
EN AW-AlMg1SiCu – Standard Specification for Aluminum and Aluminum-Alloy Round Pipe
ISO AlMg1SiCu – Standard Specification for Aluminum and Aluminum-Alloy Cold / Hot Rolled Piping
| Alloy | Fe | Si | Mg | Mn | Cu | Zn | Ti | Cr | Others | AI |
| 1100 (min) | 0.35 | 0.25 | 0.01 | 0.01 | 0.05 | 0.01 | 0.020 | Trace | 0.05 (each) | 99.60% |
| 1100 (max) | 0.50 | 0.35 | 0.03 | 0.05 | 0.20 | 0.05 | 0.030 | Trace | 0.15 (total) | remainder |
| 5083 | 0.40 max | 0.40 max | 4.0 / 4.90 | 0.40 / 1.0 | 0.10 max | 0.25 max | 0.15 max | 0.05 / 0.25 | 0.05 max | Bal |
| 6061 | 0.7 | 0.4-0.8 | 0.8-1.2 | 0.15 | 0.15-0.4 | 0.25 | 0.15 | 0.15-0.35 | 0.005/0.15 | Remainder |
| 6068 | 0.50 max | 0.7 – 1.3 | 0.06-1.20 | 0.40-1.00 | 0.10 max | 0.20 max | 0.10 max | 0.25 max | 0.05 max | Bal |
| 7075 min | 2.10 | 1.20 | 5.10 | 0.18 | ||||||
| 7075 max | 0.50 | 0.40 | 2.90 | 0.30 | 2.00 | 6.10 | 0.20 | 0.28 | 0.05 |
| Alloy | Temper | UTS(Mpa) | % Elongation | Tensile Strength | Hardness Brinell | Proof Stress | Yield Strength (PSI) | Shear Strength (PSI) | Brinell Hardness | |||
| Min | Max | 0.5 mm -0.8 mm | 0.81 mm – 1.30 mm | 1.30 mm – above | ||||||||
| 1100 | O | 75 | 110 | 20 | 25 | 29 | ||||||
| H12 | 95 | 130 | 5 | 6 | 7 | |||||||
| H14 | 110 | 145 | 3 | 4 | 5 | |||||||
| H16 | 130 | 165 | 2 | 3 | 4 | |||||||
| H18 | 150 | — | 2 | 2 | 3 | |||||||
| 5083 | 12 Min % | 275 – 350 MPa | 75 HB | 125 Min MPa | ||||||||
| 6061 | – | 45,000 | 12 | 40,000 | 31,000 | 95 | ||||||
| 6082 | 8 | 295 | 95 | – | 240 | – | – | |||||
| 7075 T6, T651 | 11 | 83-572 | 73- 503 | 150 | ||||||||
| 7075 T73, T7351 | 13 | 73-503 | 63-434 | NA | ||||||||
Mustafa Aluminium based in Istanbul, Turkey is a renowned manufacturer and supplier of premium aluminium products, including Aluminium Bars, Sheets and Plates, Coils, Chequered Plates, Wires, Pipes, Fittings, Flanges, Forging, Circle, Angles. With a commitment to delivering exceptional quality and service, we cater to diverse industries, offering reliable solutions tailored to specific requirements. Our products are known for their superior strength, corrosion resistance, and precise dimensions. We focus on customer satisfaction by providing an extensive range of aluminium bars designed for structural, industrial, and decorative applications.
Yes, we offer custom sizes for Aluminium Seamless Pipes to meet specific project needs. Our team at Mustafa Aluminium is committed to providing customized solutions for all your requirements. For more details, contact us at sales@mustafaaluminium.com
| Grade | UNS | USA | Japan | France | ISO | WNR | EN | DIN | ISO | BS (OLD) |
| 1100 | A91100 | AA1100 | JIS A1100P | NF 1100 | Al 99.0 Cu. | – | – | – | – | – |
| 6082 | A96082 | AA6082 | – | – | – | 3.2315 | AW-6082 | AlMgSi1 | AlSi1MgMn | HE30 |
| 5083 | A95083 | 5083 | – | – | AlMg4,5Mn0,7 | 3.3547 | AW-AlMg4,5Mn0,7 | AlMg4,5Mn | – | – |
| 6061 | A96061 | AA6061 | – | – | – | 3.3211 | AW-AlMg1SiCu EN AW-6061 | AlMgSiCu | AlMg1SiCu | HE20 |
| 7075 | A97075 | 7075 | 3.4365 | ENAW-AlZn5.5MgCu EN AW-7075 | AlZnMgCu1.5 | AlZn6MgCu | 7075 L95 L96, V95 |
Aluminium seamless pipes are used to a great extent in industries that demand high-performance piping with good structural integrity. In aerospace and aviation, they find application in hydraulic systems and structural parts because of their strength-to-weight ratio. They are used in the automotive industry for fuel lines, air conditioning systems, and chassis structures. In the marine industry, their corrosion resistance makes them ideal for shipbuilding and offshore uses. They are used in chemical processing, heat exchangers, and high-pressure gas lines. They are seamless in nature, providing leak-free operation, thus making them suitable for applications involving transport of critical fluid and gas.
